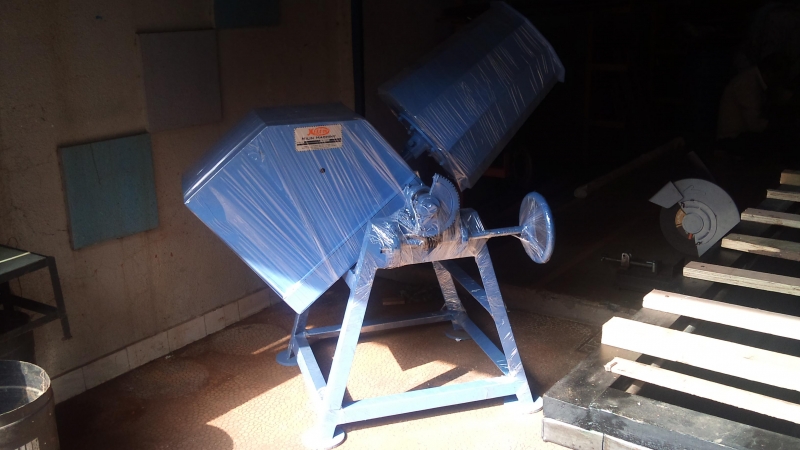

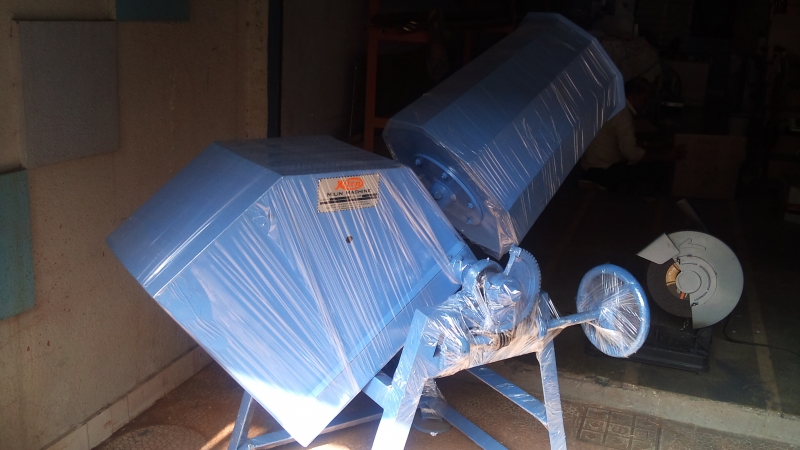

This is an Octagonal Barrel mounted on C I frame coupled with stout tie bars. It is rotatable, and is powered by a 1 H.P. Geared motor. The standard unit is of 20-kg capacity and has size of 432 mm x 558 mm x 545 mm depth. Other sizes are also available. Lining of the Barrel with Rubber, PVC or Wood can be done as per requirement.

These types of Barrels are used for plating small parts where standard Barrels are not possible, and Tanks are also not practical.

The Barrel is Octagonal in shape and of M.S. lined internally with rubber. It is rotatable and is fitted with a Geared Motor of A.C. Supply.
