Approx current carrying capacity in Amperes of various pure metals in 1 sq. inch (645 sq.mm.) section.
Copper : 1000 • Aluminium: 600 • Brass: 250 • Phos. Bronze : 180
Mild Steel : 120 • Titanium : 31 • Stainless Steel : 23

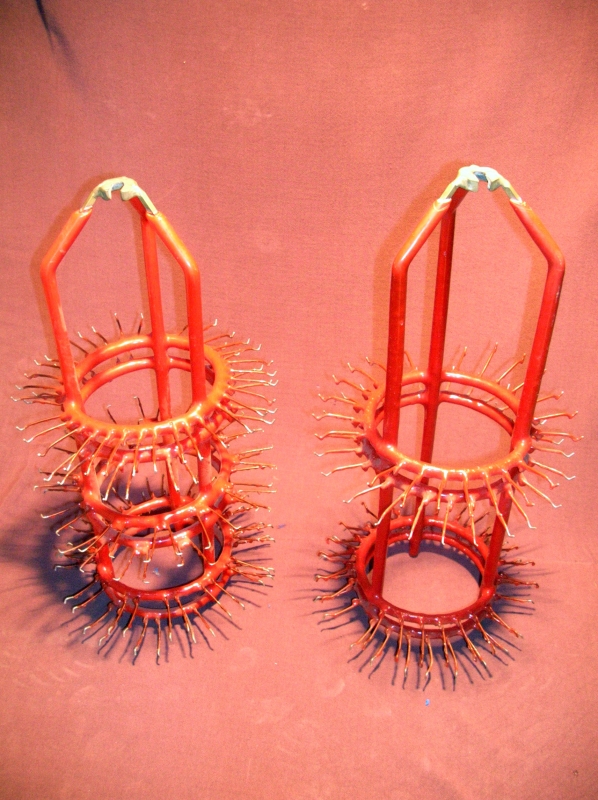

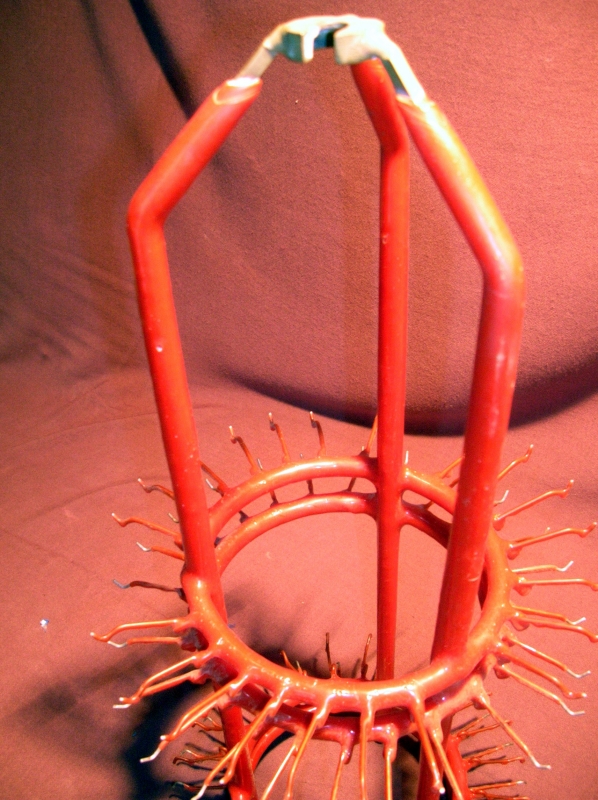

 Jigs are to be used for Electroplating, Electro polishing, Painting and Anodizing. For surface treatment such as Phosphating, Electro painting and Enameling, jigs can be used and these are termed as furnace furniture. Jigs made of Titanium are to be used for anodizing / electro polishing. Jigs can be designed, fabricated and insulated according to customers requirements. The following details are required while enquiry/order :

(a) Cathode rod diameter or cross section.
(b) Vat depth, solution depth, nature of solution and temperature.
(c) Spine style, contact style and configuration.
(d) Distance between Cathode rod and Anode bus bars and Rectifier Capacity.
(e) Nature of articles (if possible samples should be sent).
